NXT-5RE

Keri Systems

NXT-5RE Wall Switch Proximity Reader, Exit and Egress Version - NXT-5RE

Description

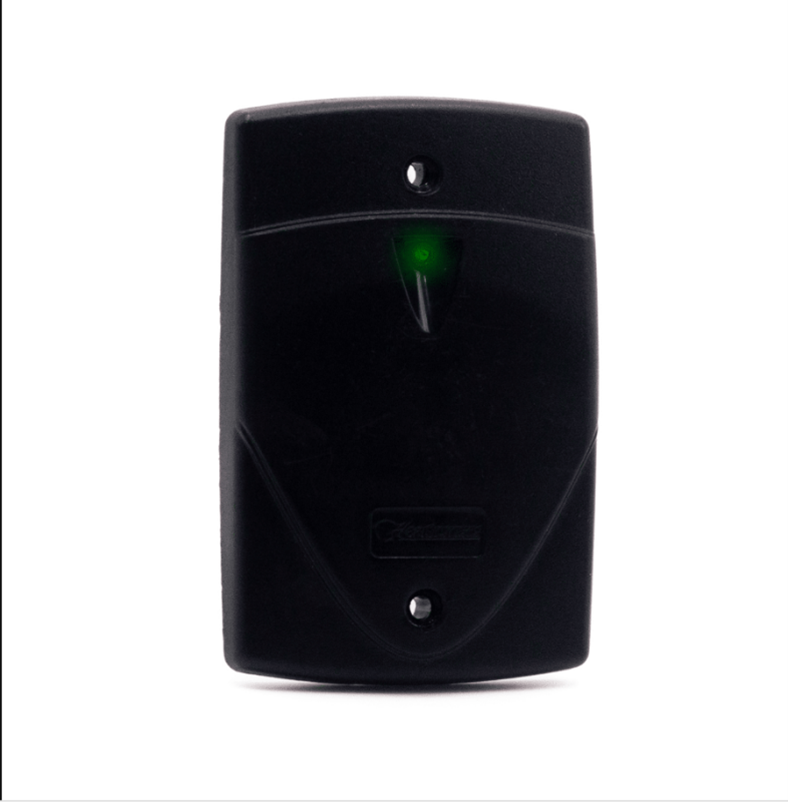

Medium Sized, NXT Reader - The NXT-5R measures 4.18 inches high by 2.95 inches wide by .625 inches deep (10.6 cm high x 7.5 cm wide x 1.6 cm deep) and can be mounted on a US single gang electrical box or flat on a wall. Read range is up to 6"" (15cm) when mounted at least one inch off metal. If the reader is mounted using a metal electrical junction box with the thickness of the wall material separating the reader from the box, read range will be reduced. The Exit reader is installed into the same reader bus as the Entry reader, and within Doors.NET you can enable the Exit reader for Entry/Exit Configurations from a Single reader bus.

Features:

Single Bus Entry & Exit

NXT or HID 125-kHz credentials

Up to 6"" read range (15.24cm)

300m Wiring Distance

Supervised Line
