PRS-TDM-MECH

Hartmann Controls Corp.

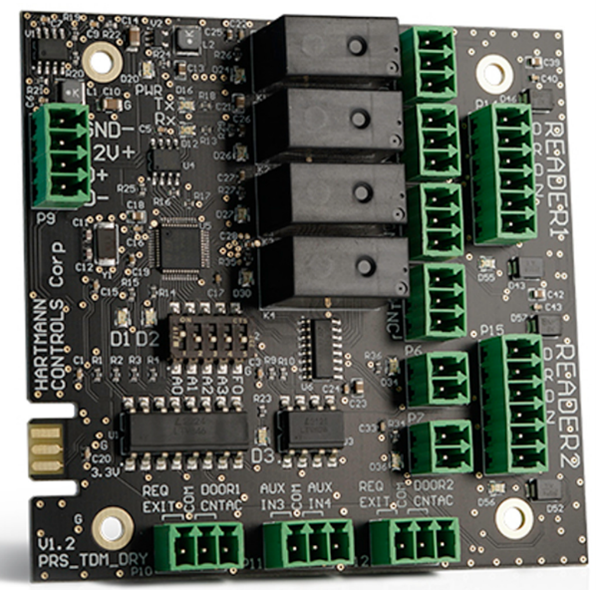

Two Door Expander Without Enclosure - PRS-TDM-MECH

Description

The PRS-TDM-MECH (Two Door Module with mechanical relays) is used to expand the door/reader/input/output capacity on the PRS-2DR Starter. ideal for installations or retrofits where power supplies and wiring are pre-existing. Up to 4 can be added within a single PRS-Door controller for a maximum of 8 doors.

Features:

12VDC power is provided from the PRS-Master controller via interconnect strips. It can be externally powered.

RS-458 communication between PRS-Master and TDM expansion panels.

Easy to set addressing via dip switches. Clear labeling of inputs, outputs and reader ports. LED indicators for input, output and connectivity.

6 Digital or Supervised inputs in total. These inputs are fully configurable and can be assigned to any door for more complex setups.
